Renewable energy newsletter page3

Text Box: New energy efficiency legislation that will drastically impact your building is fast approaching and you don’t want to be caught unprepared. Join us for an interactive session with leaders in the field

Text Box: of energy efficiency. Learn how you can take advantage of these required changes, and benefit from cost saving measures. You will also hear about all of the potential funding and

Text Box: financing opportunities available to help with project costs. June 17, 2010, 6:00-8:00pm, followed by networking a reception

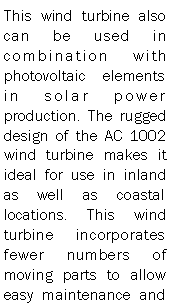

Text Box: This wind turbine also can be used in combination with photovoltaic elements in solar power production. The rugged design of the AC 1002 wind turbine makes it ideal for use in inland as well as coastal locations. This wind turbine incorporates fewer numbers of moving parts to allow easy maintenance and

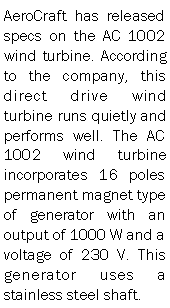

Text Box: AeroCraft has released specs on the AC 1002 wind turbine. According to the company, this direct drive wind turbine runs quietly and performs well. The AC 1002 wind turbine incorporates 16 poles permanent magnet type of generator with an output of 1000 W and a voltage of 230 V. This generator uses a stainless steel shaft.

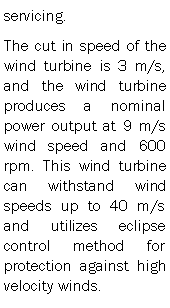

Text Box: servicing. The cut in speed of the wind turbine is 3 m/s, and the wind turbine produces a nominal power output at 9 m/s wind speed and 600 rpm. This wind turbine can withstand wind speeds up to 40 m/s and utilizes eclipse control method for protection against high velocity winds.

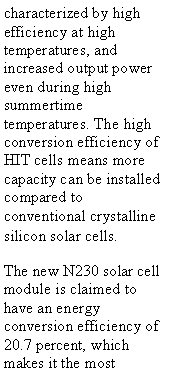

Text Box: characterized by high efficiency at high temperatures, and increased output power even during high summertime temperatures. The high conversion efficiency of HIT cells means more capacity can be installed compared to conventional crystalline silicon solar cells. The new N230 solar cell module is claimed to have an energy conversion efficiency of 20.7 percent, which makes it the most

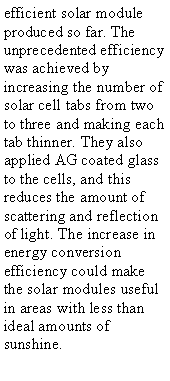

Text Box: efficient solar module produced so far. The unprecedented efficiency was achieved by increasing the number of solar cell tabs from two to three and making each tab thinner. They also applied AG coated glass to the cells, and this reduces the amount of scattering and reflection of light. The increase in energy conversion efficiency could make the solar modules useful in areas with less than ideal amounts of sunshine.

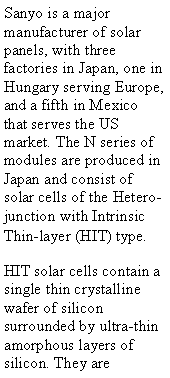

Text Box: Sanyo is a major manufacturer of solar panels, with three factories in Japan, one in Hungary serving Europe, and a fifth in Mexico that serves the US market. The N series of modules are produced in Japan and consist of solar cells of the Hetero-junction with Intrinsic Thin-layer (HIT) type. HIT solar cells contain a single thin crystalline wafer of silicon surrounded by ultra-thin amorphous layers of silicon. They are

Text Box: The high conversion efficiency of HIT cells means more capacity can be installed
